SmallRig 4002 雙管夾快拆座 (兼容ARRI 燕尾板)

Name: SmallRig 4002 雙管夾 快拆座 (兼容ARRI 燕尾板)
Brand: 鏡花園IPIX 銷售官網
SKU: 4002
Price: 2970.0 TWD
Availability: InStock

＊適用導管：15mm
＊適用機型：通用款

NT$2,970

~~NT$3,300~~

商品編號: 4002

供貨狀況: 尚有庫存

加入最愛

商品介紹

✅請您購買前務必閱讀，訂購視同同意此訊息：

✅因本公司有銷售門市，庫存變動較大，下標前先發問確認商品是否有現貨。

✅如遇商品缺貨而造成無法如期交貨，IPIX 鏡花園保有取消訂單權益，感謝您的支持。

SmallRig 15mm Dovetail Baseplate 4002

＊特色：
1.通用款，底部帶有1/4吋或3/8吋的相機、攝影機皆可使用。
2. 雙管座底部可安裝ARRI燕尾板。
3. 僅300克，鏤空設計，減輕重量。
4. 內置扳手，拆裝方便
5. 減少厚度，降低重心更穩定。

＊注意：
鏡頭直徑較大或接口較低的機器，使用時建議搭配兔籠或加高底板。

＊適用：
15mm導管，通用型

＊包裝內含：
雙管座 x1
1/4吋-20螺絲 x2
3/8吋-16螺絲 x1
內六角扳手 x1

＊產品規格：
產品尺寸：109.6 x 99.0 x 37.5mm
封裝尺寸：132.0 x 124.0 x 51.0mm
產品重量：318g±5g
包裝重量：677g±5g
材料：鋁合金、不銹鋼

Features
1. Universal
2. Supports ARRI dovetail plate
3. Hollowed out design to reduce weight without sacrificing payload
4. Built-in wrench for easy assembly and disassembly
5. Low center of gravity helps lower the height of camera while leaving room for dual rods

Description

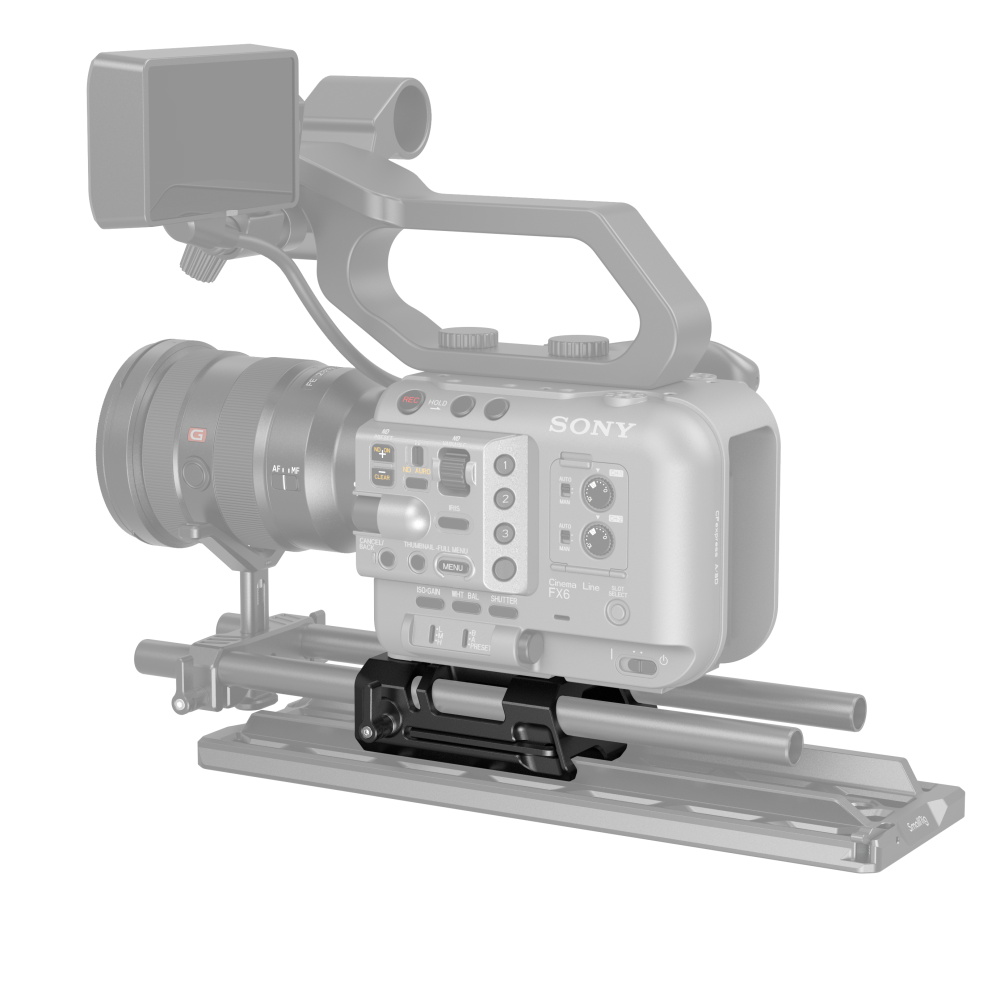

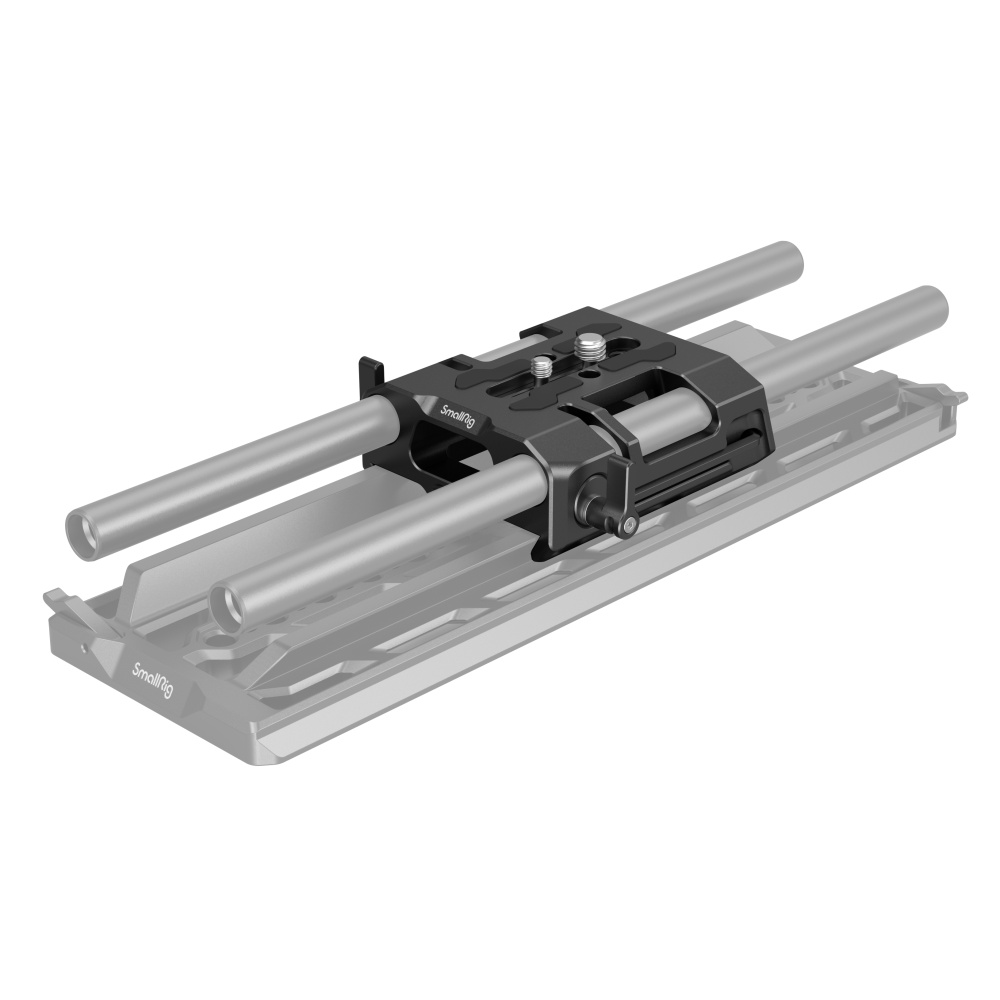

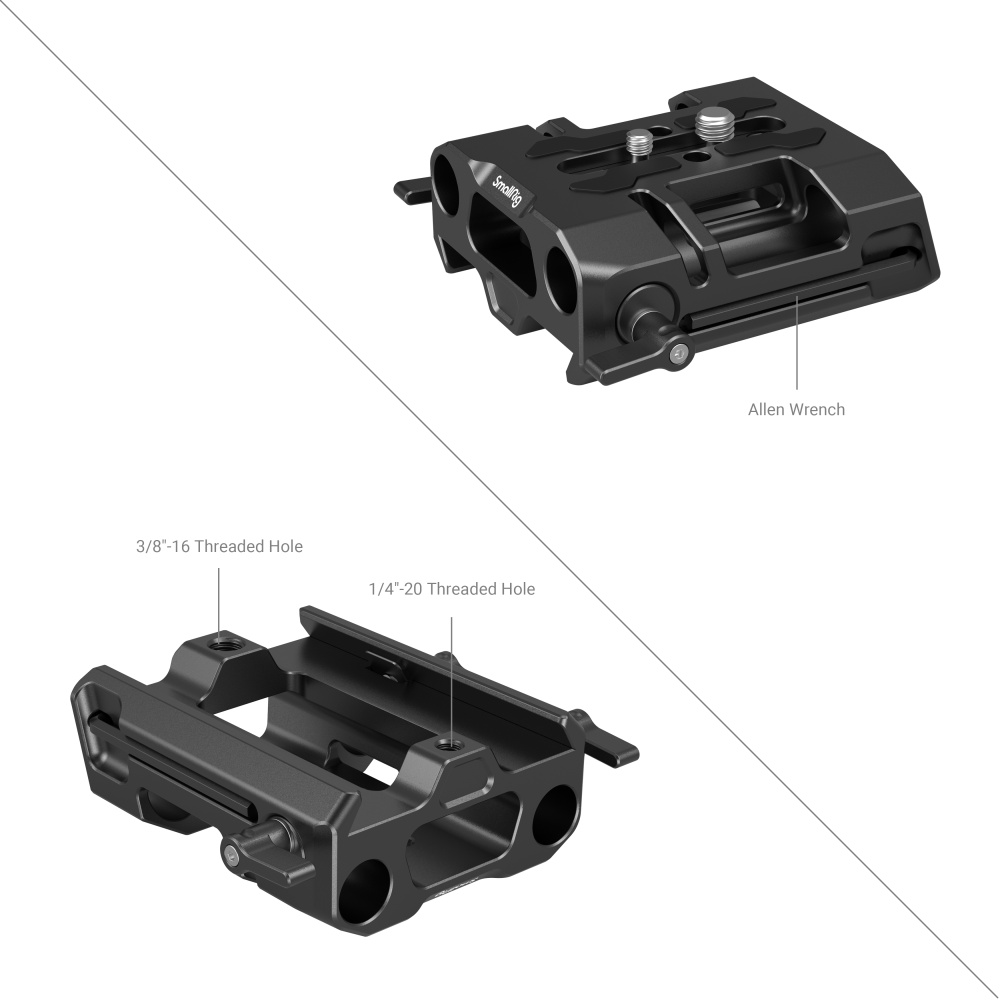

SmallRig 15mm Dovetail Baseplate 4002, which is ARRI dovetail plate compatible, has a hollowed-out structure to weigh only over 300g yet it can bear as much as 20kg. One 1/4"-20 screw and one 3/8"-16 screw, through the top though slots, lock camera to prevent twist; and a wrench is built into the side for assembly and disassembly without affecting the use of the baseplate. The baseplate features a 1/4"-20 threaded hole and a 3/8"-16 threaded hole at the bottom that support other quick-release plates besides ARRI ones. With a low center of gravity, it measures only 38mm in height, so that camera is only 28mm away from the dovetail plate, lowering the height of camera while leaving enough room for dual rods.

Note:
For camera with lower center ofoptical axis, a cage or a heightriser plate is recommended while using with this product and dual 15mm rods
The center of rodsis 15mm away from the top of the dovetailplate, and 13mm away from the top of the baseplate

Compatibility
Universal

In the Box
1 x Baseplate
2 x 1/4"-20 Screw
1 x 3/8"-16 Screw
1 x Wrench

Specifications

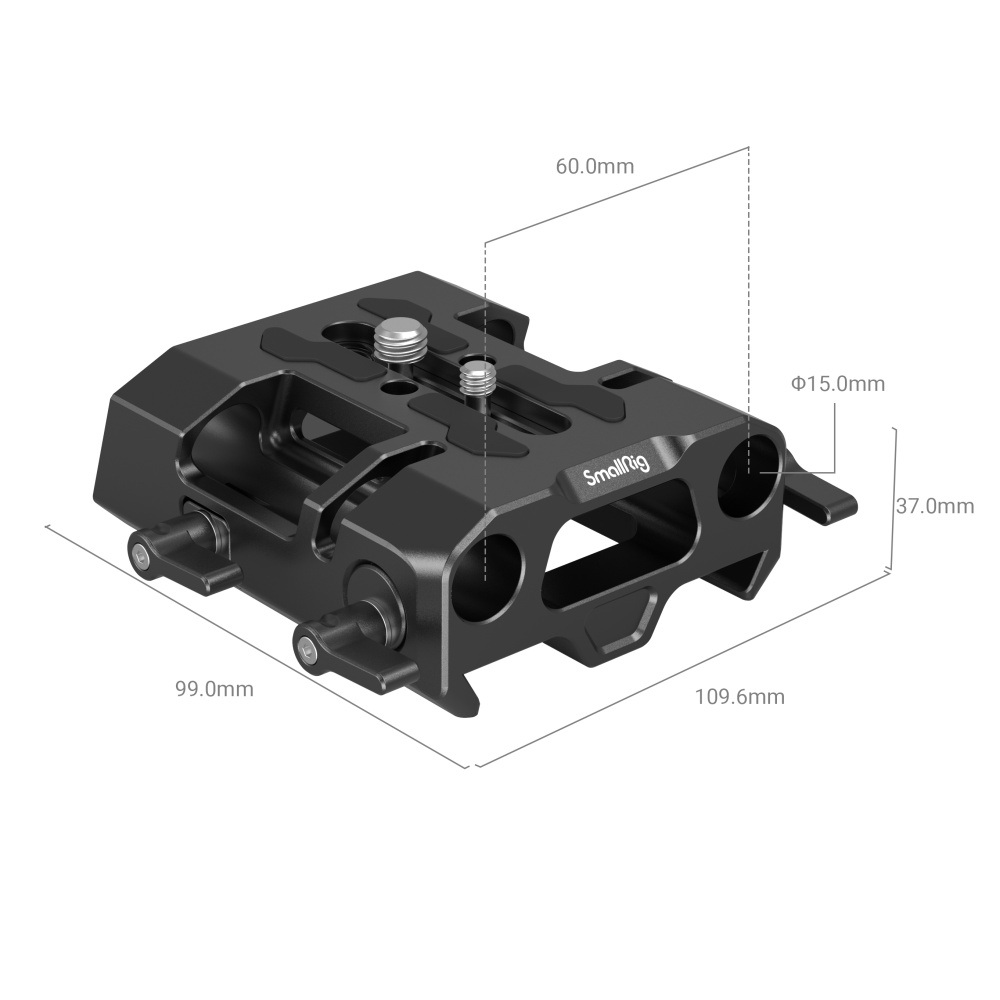

Product Dimensions: 109.6 x 99.0 x 37.5mm
Package Dimensions: 132.0 x 124.0 x 51.0mm
Product Weight: 318g±5g
Package Weight: 677g±5g
Material(s): Aluminum Alloy, Stainless Steel
