SmallRig 3498 V掛電池供電板帶雙管夾基本款

Name: SmallRig 3498 V掛電池 供電板 帶雙管夾 基本款
Brand: 鏡花園IPIX 銷售官網
SKU: 3498
Price: 3663.0 TWD
Availability: InStock

適用：大多數V掛電池
附雙管夾，背板位置可調整

＊不適用：PAGlink系列、Patona的BP-190WS

NT$3,663

~~NT$4,070~~

商品編號: 3498

供貨狀況: 尚有庫存

加入最愛

商品介紹

✅ 請您購買前務必閱讀，訂購視同同意此訊息：

✅ 因本公司有銷售門市，庫存變動較大，下標前先發問確認商品是否有現貨。

✅ 如遇商品缺貨而造成無法如期交貨，IPIX 鏡花園保有取消訂單權益，感謝您的支持。

SmallRig V Mount Battery Adapter Plate (Basic Version) with Dual Rod Clamp 3498

＊特色：
1. 適合多數V掛電池，為您的裝備提供更長的供電

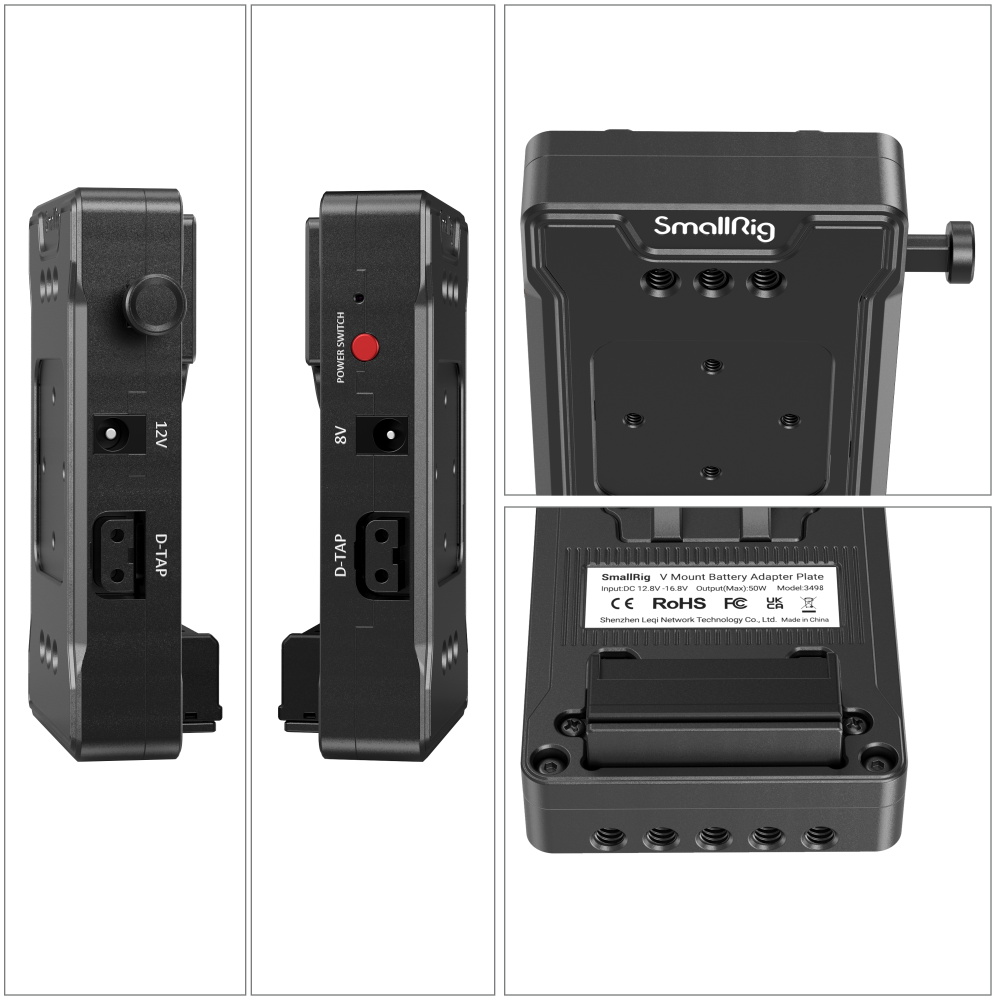

2. 提供不同的輸出端口，包括一個8V DC輸出端口、一個12V DC輸出端口，和兩個14.8V D-Tap輸出端口
3. 增加SWITCH按鈕，On/Off一鍵切換
4. 帶15mm雙管夾，可調整安裝位置。
5. 背面、頂部和底部有多個 1/4”-20 螺紋孔，用於連接雙桿夾、魔術手臂或其他配件。

＊注意事項：
請勿在潮濕環境中使用，以免造成短路

＊適用：
本產品適用於大部分V掛電池，
但不適用PAGlink系列的V掛電池
與 Patona Premium Battery的BP-190WS

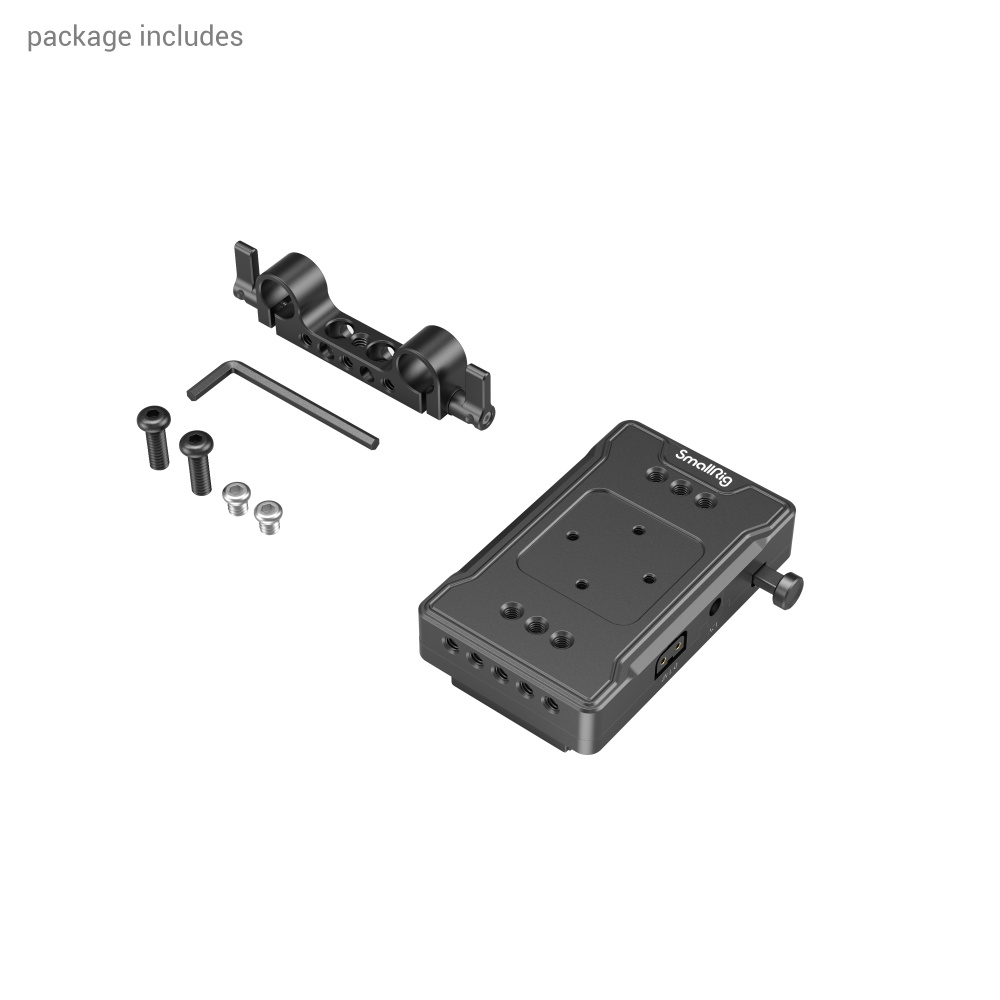

＊包裝內含：
1 x V掛電池供電板
1 x 15mm雙管夾
2 x 內六角扳手
2 x 安裝螺絲

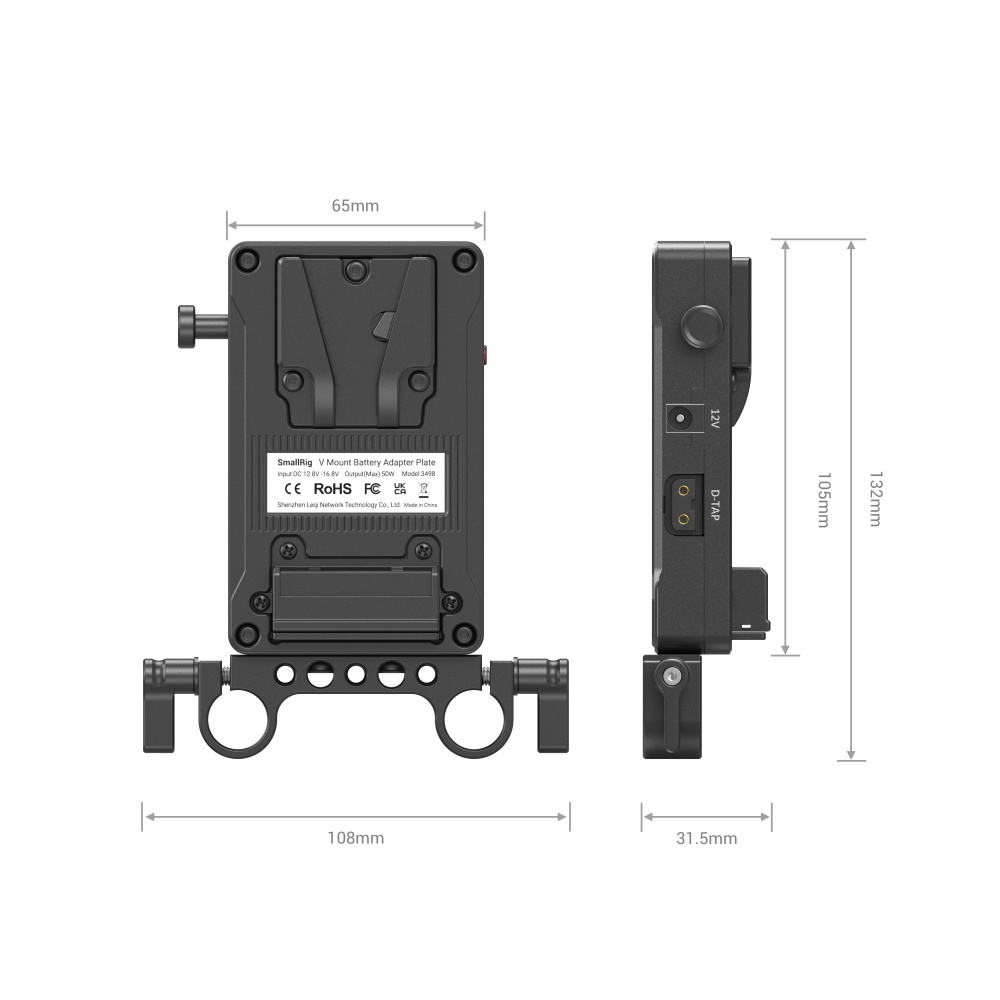

產品尺寸：131.5 x 108 x 30.2mm
包裝尺寸：152 x 152 x 40mm
淨重：260 ± 5g
包裝重量：355 ± 5g
材質：鋁合金

Key Features:
1. Standard V mount fits most V mount batteries.
2. Dual D-Tap output ports and DC output ports.
3. On/off switch for easy use.
4. Dual rod clamp suits 15mm rail support system.
5. Multiple built-in 1/4”-20 thread holes for accessory attachment.

SmallRig V Mount Battery Adapter Plate (Basic Version) with Dual Rod Clamp 3498 is designed to provide greater battery life to your camera rig via a V mount battery. Its standard quick-lock V mount supports most V mount batteries. Output ports, including an 8V DC port, a 12V DC port, and two 14.8V D-Tap ports, work with a V mount battery to power your camera and other equipment (e.g. monitor, transmitter, follow focus, mobile phone, etc.). It features a power switch that controls all of the output ports more quickly and conveniently and comes with a 15mm dual rod clamp that suits a 15mm rail support system. In addition, multiple 1/4”-20 thread holes allow attaching other accessories such as super clamp mount and magic arm.

Designer: Clara Oswald
Note:
1. Do not use in damp environment to avoid short circuits;

Compatibility:
The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

Package Includes:
1 x V Mount Battery Adapter Plate
1 x 15mm Dual Rod Clamp
1 x Allen Wrench
4 x Screw

Product Dimensions: 131.5 x 108 x 30.2mm
Package Dimensions: 152 x 152 x 40mm
Net Weight: 260 ± 5g
Package Weight: 355 ± 5g
Material: Aluminum Alloy
